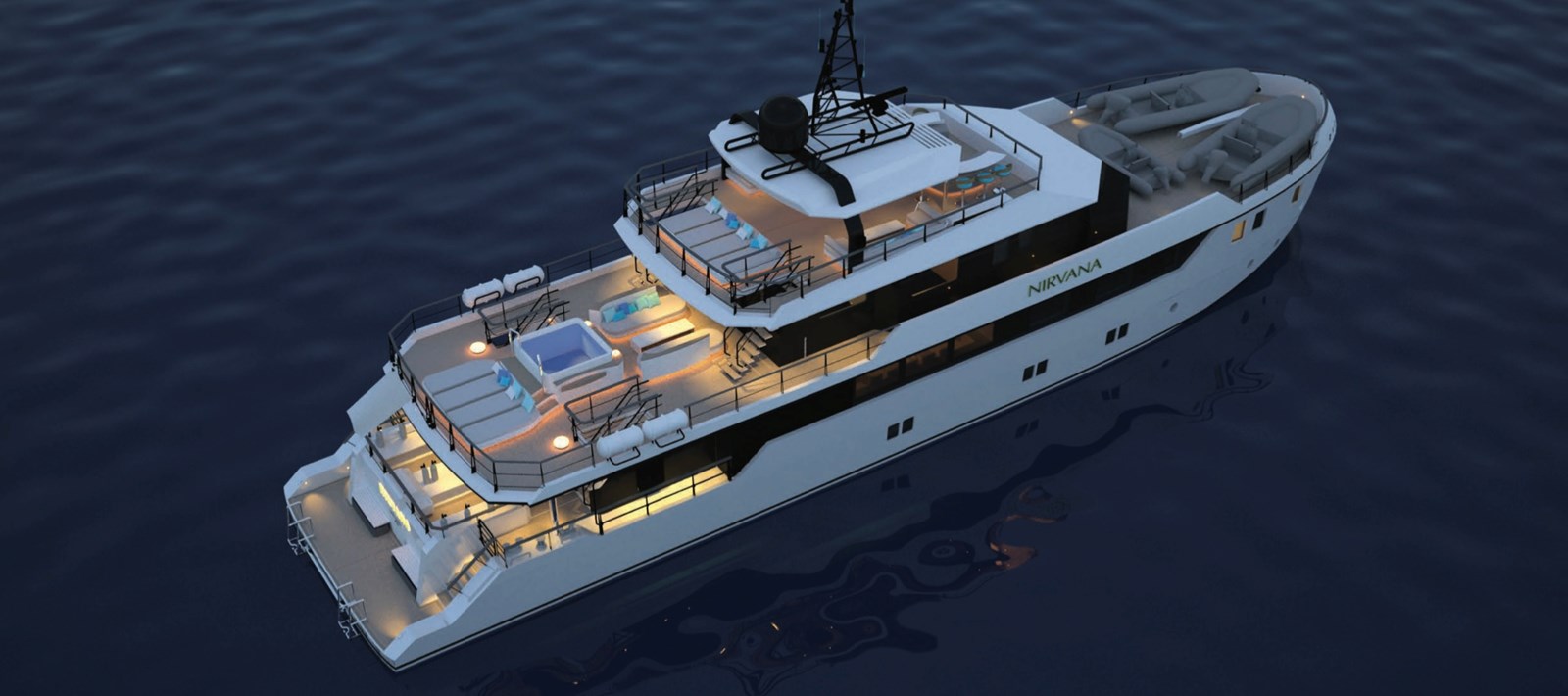

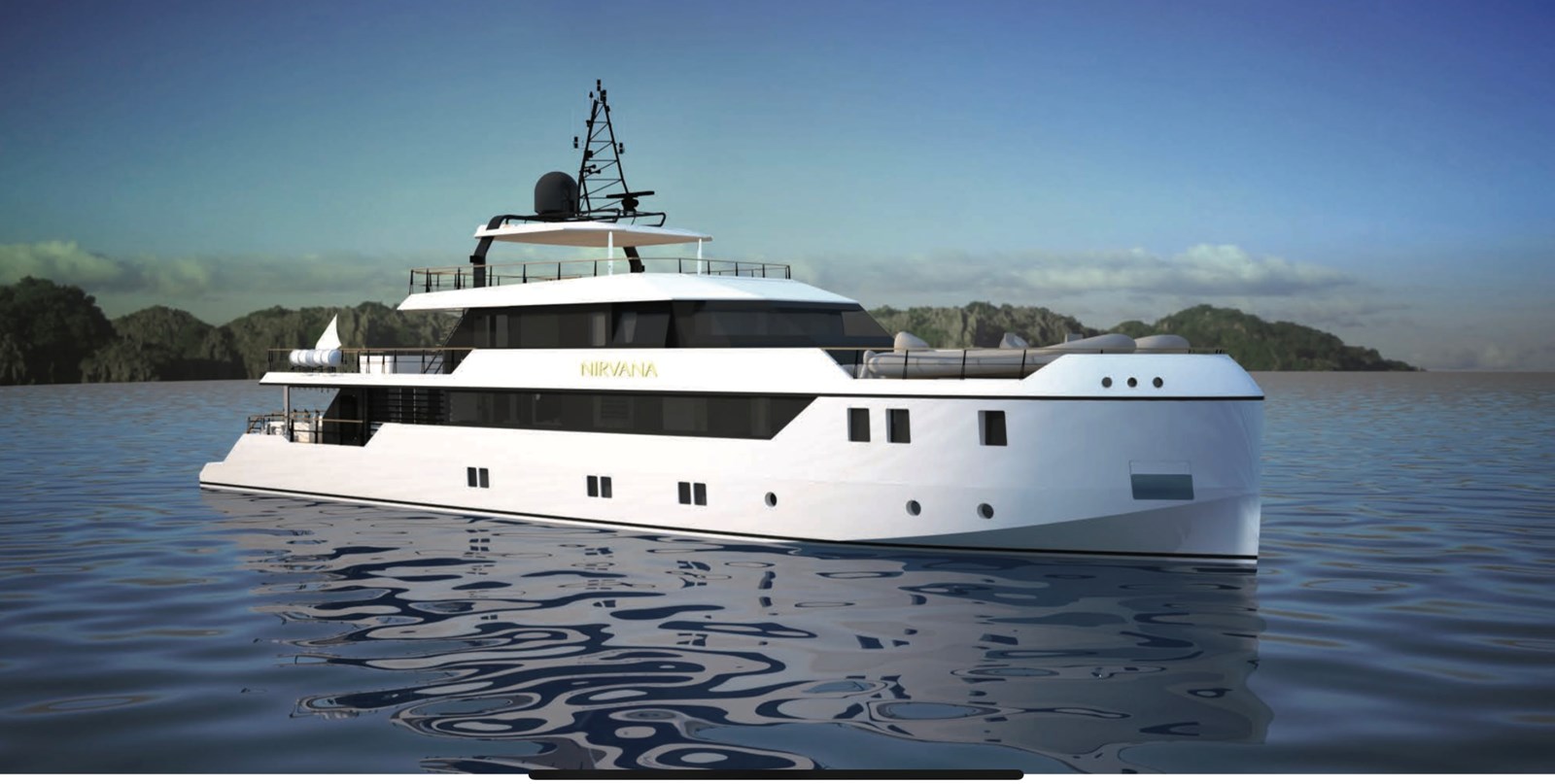

NIRVANA Yacht For Sale

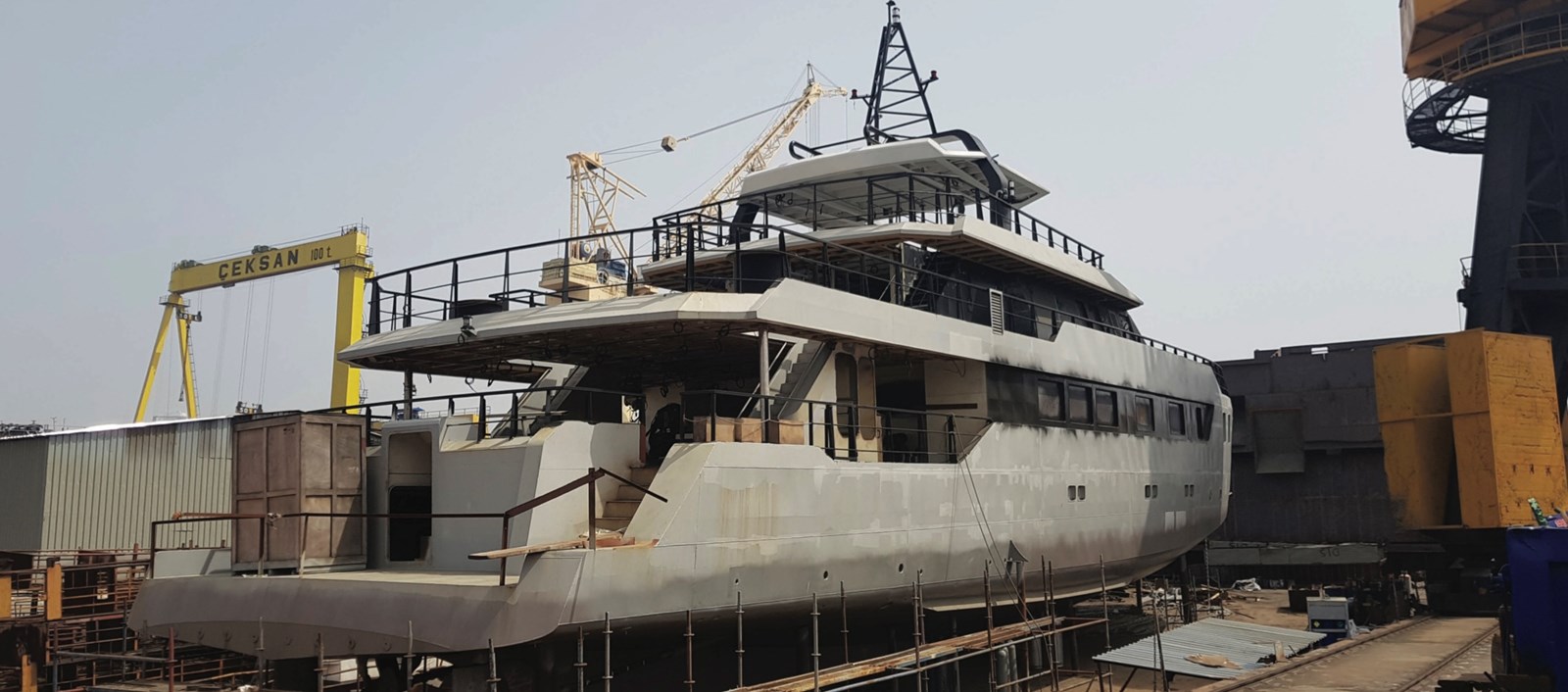

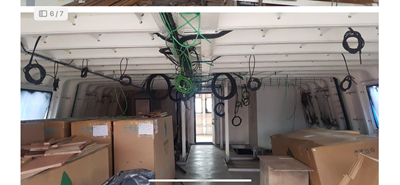

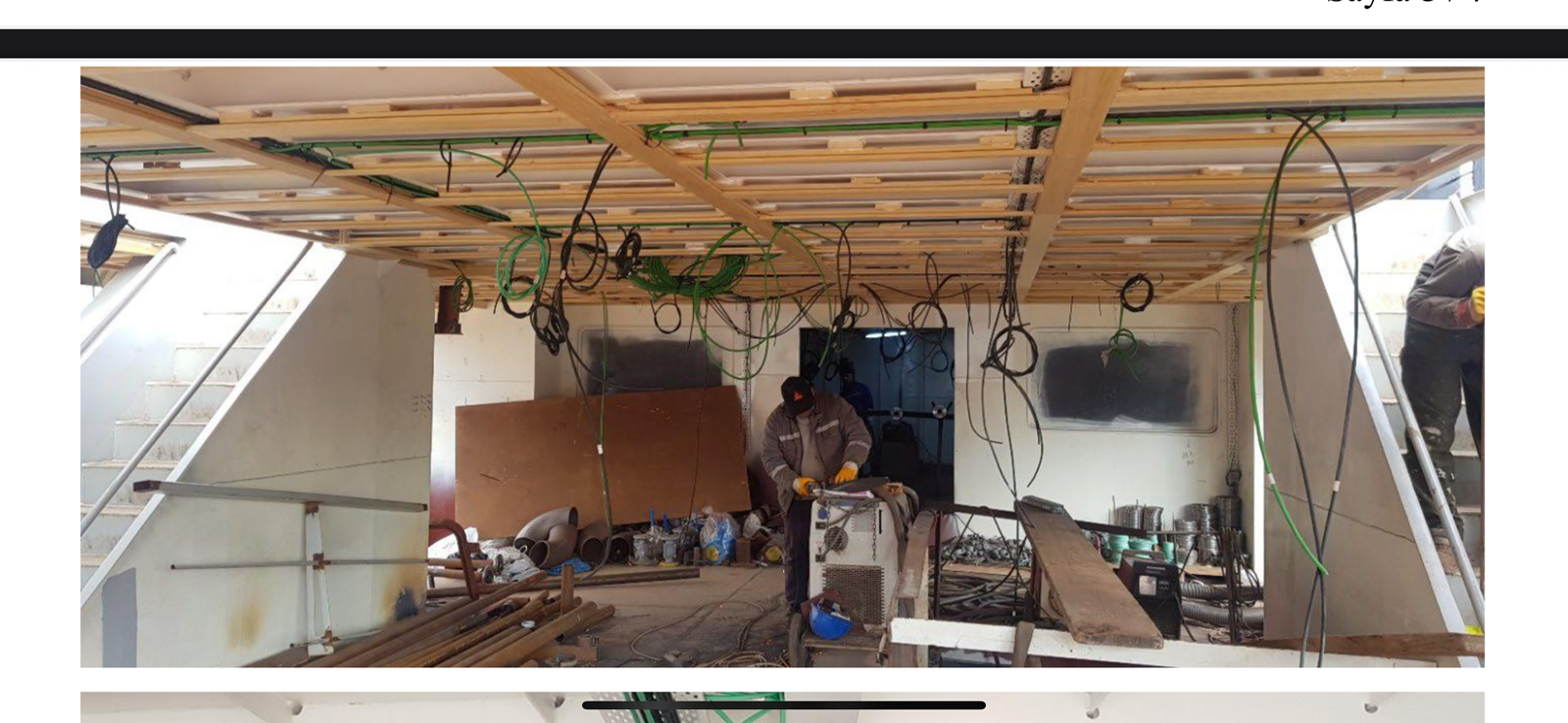

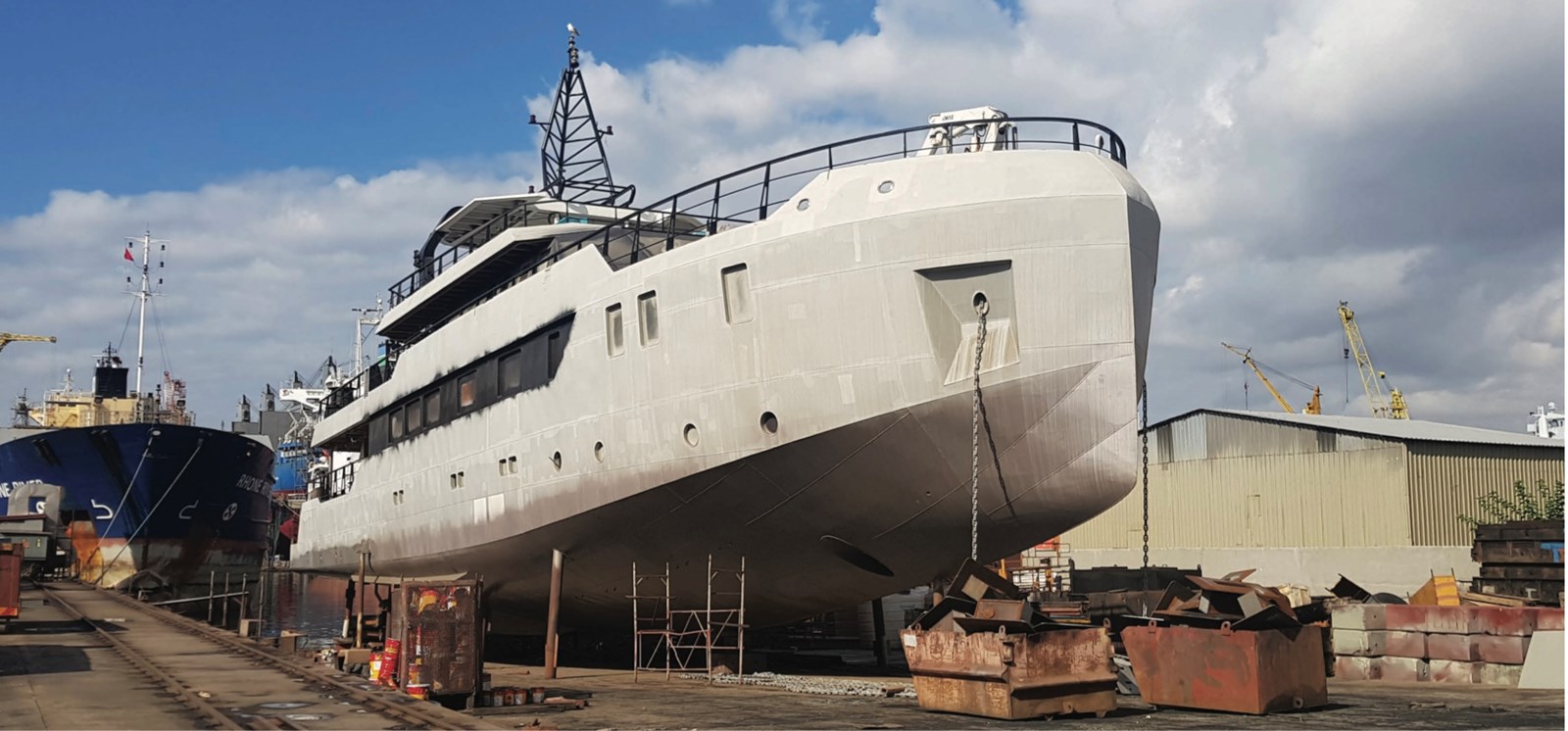

This yacht has been partially constructed and currently remains in the condition shown in the photos. It is available for purchase as-is at the listed price, or alternatively, you may acquire and complete the construction to your own specifications.

Specifications

General Information

• Yacht Name: 40 M SOYASLAN N130

• Type: Passenger Yacht

• Flag: Palau

• Classification: Bureau Veritas (✠ HULL • MACH CHARTER YACHT – motor – S Unrestricted Navigation)

Dimensions

• Length Overall (LOA): 39.95 m

• Waterline Length (LWL): 39.81 m

• Beam: 9.00 m

• Draft: 2.30 m

• Depth: 4.03 m

• Gross Tonnage: 390 GT

• Displacement: 316 tonnes

Performance

• Maximum Speed: 14 knots

• Cruising Speed: 12 knots

Capacity

• Guest Capacity: 24 passengers

• Crew Capacity: 13

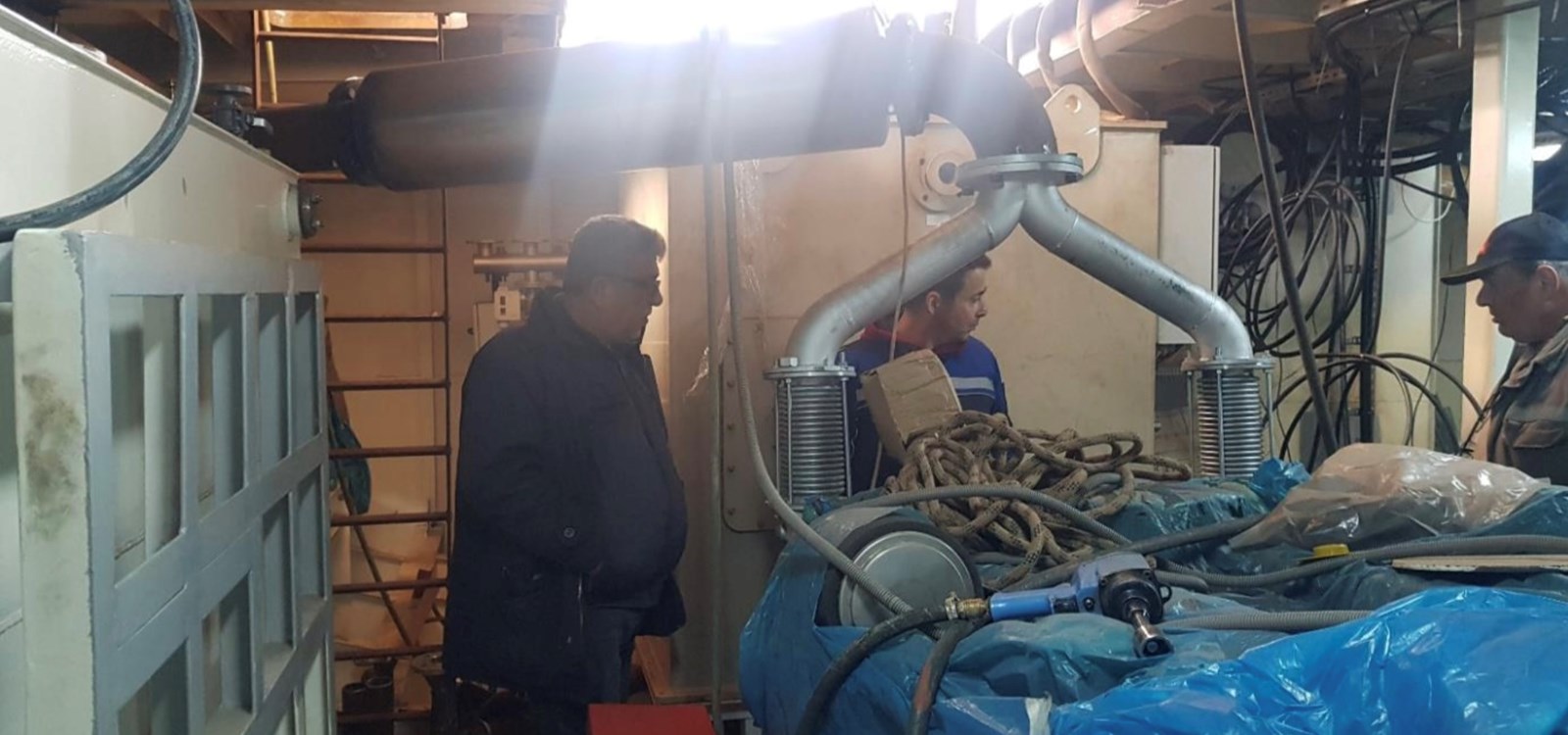

Engines & Machinery

• Main Engines: 2 × Doosan 4V222TIH (588 kW @ 1800 RPM)

• Reduction Gears: 2 × Doosan (3.02:1, with trolling valve)

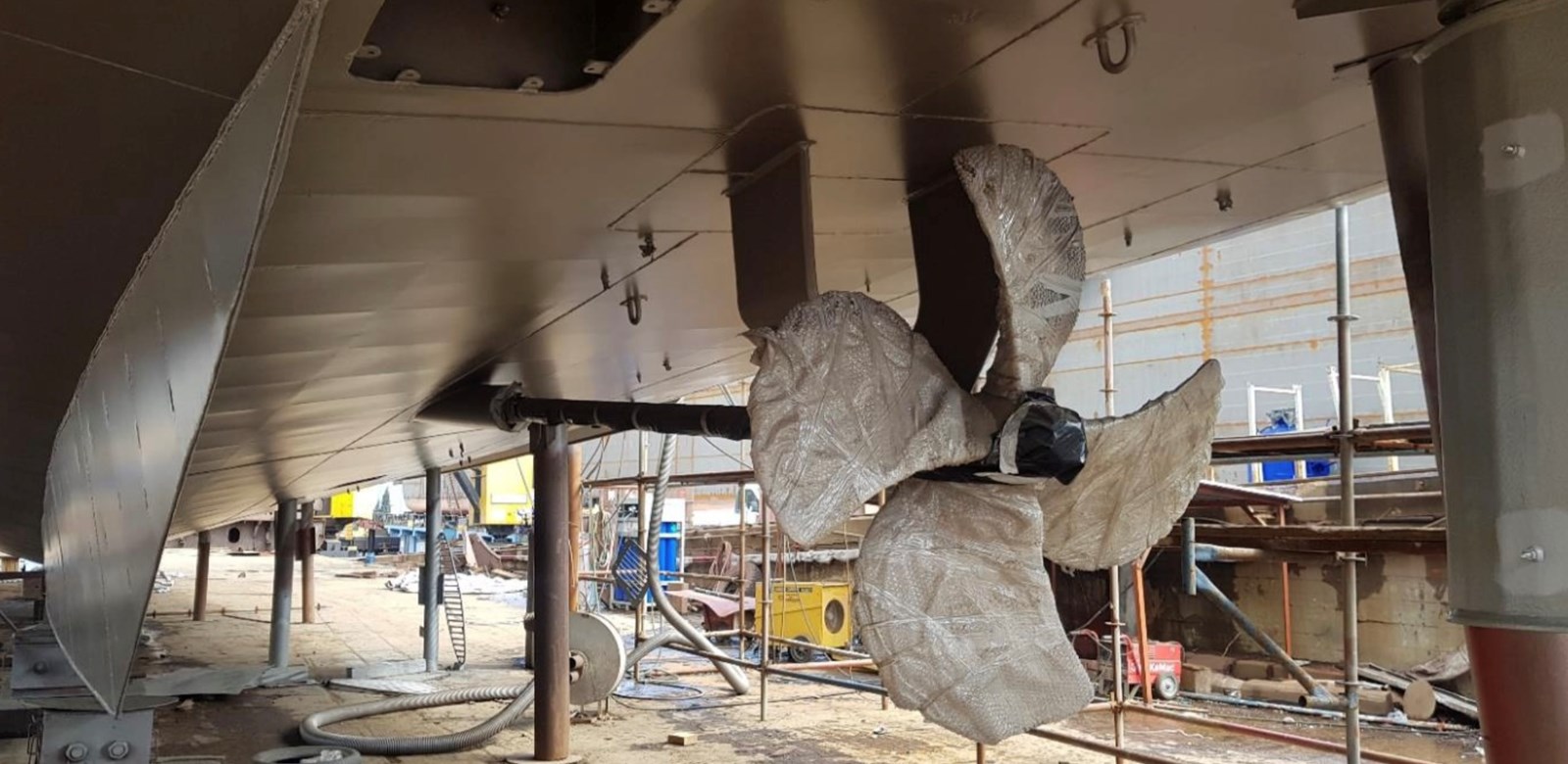

• Propellers: 2 × 1275 mm, 4-blade ERC propellers

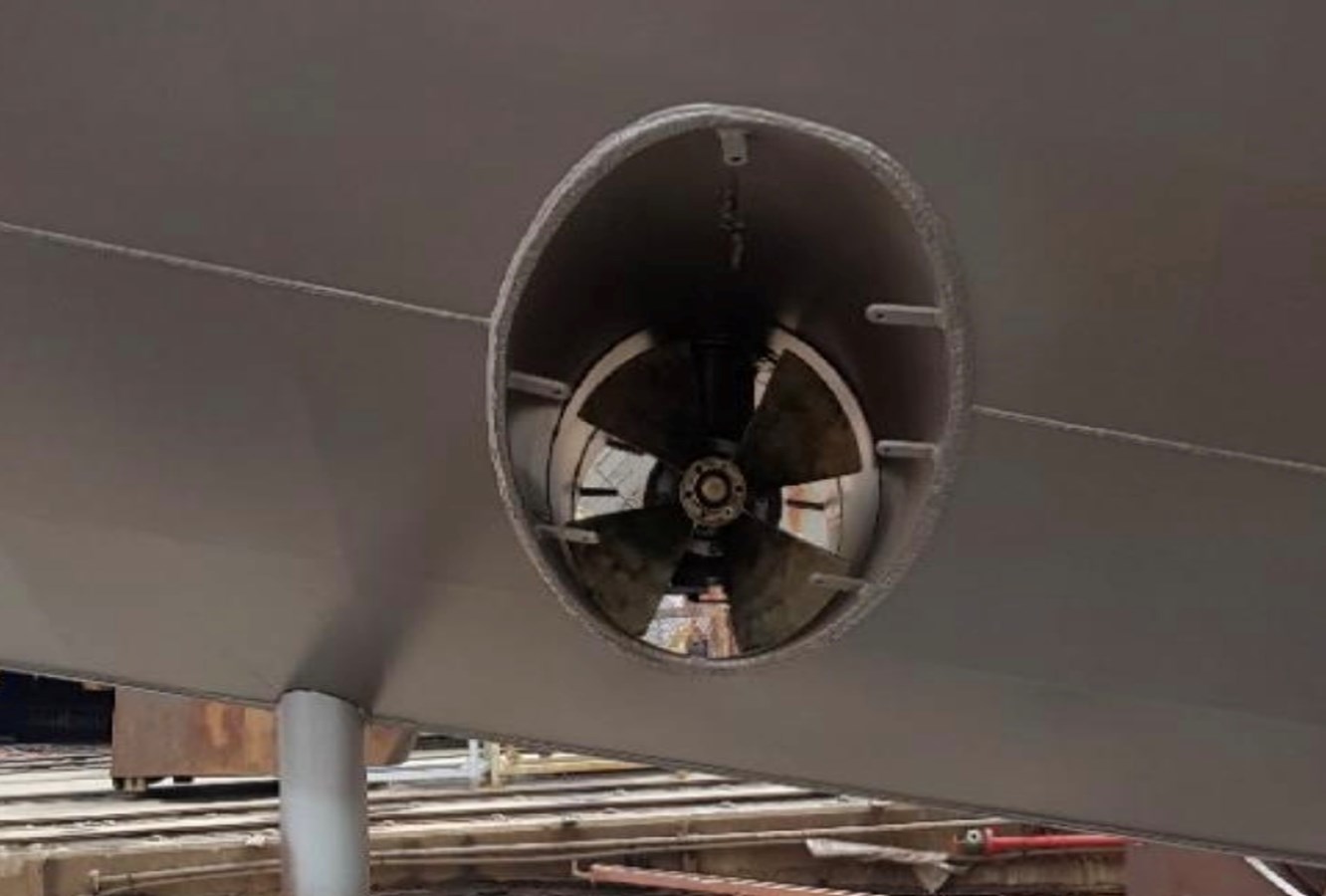

• Bow Thruster: 55 kW ERC

• Generators: 2 × Doosan AD136 (93 kW each)

• Sewage Treatment: ACO Clarimar MF3 with vacuum interface

Electrical & Systems

• Electrical System: BV certified wiring & distribution panels

• Navigation lights installation completed

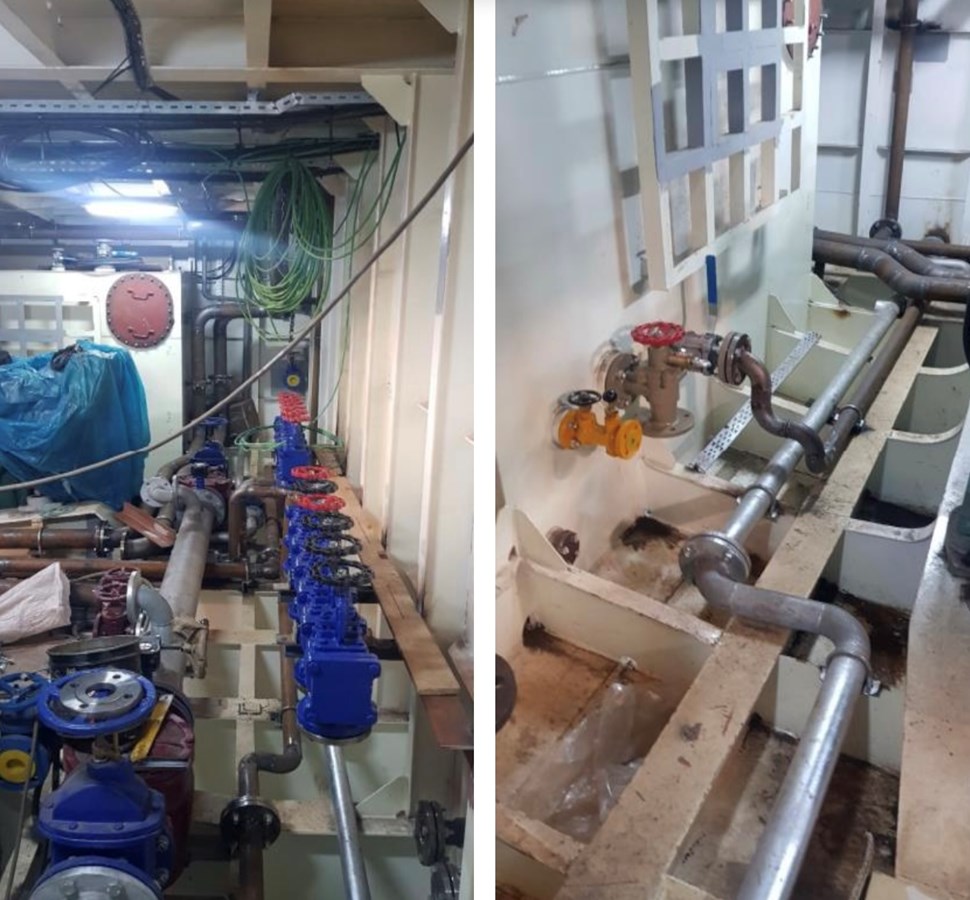

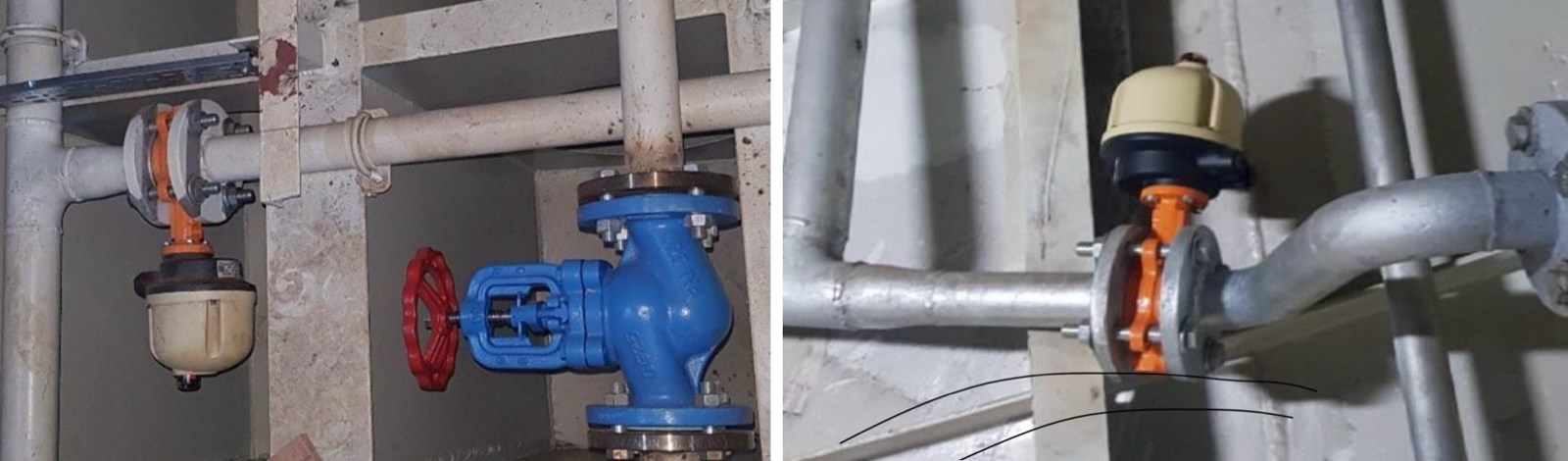

• Bilge & fire systems with electric-controlled valves

Outfitting

• Anchors: 2 × 360 kg HHP with 275 m chain (BV certified)

• Anchor Windlasses & Capstans: DATA brand with steel bell

• Steering Gear & Rudders: DATA brand

• Hydraulic Fore Crane: 10 ton.m with electro-hydraulic power pack

• Air Conditioning: 360,000 BTU chilled water system with fresh air makeup units

• Watertight doors (in-house designed & tested)

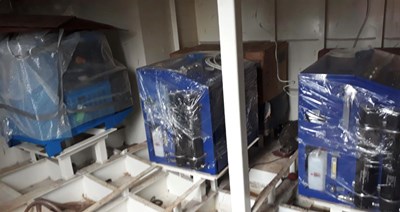

• Scuba Compressors: 1 × Coltri LP 300, 2 × Coltri MCH16 Mark 3

• 56 Aluminum Anodes (5-year replacement cycle)
